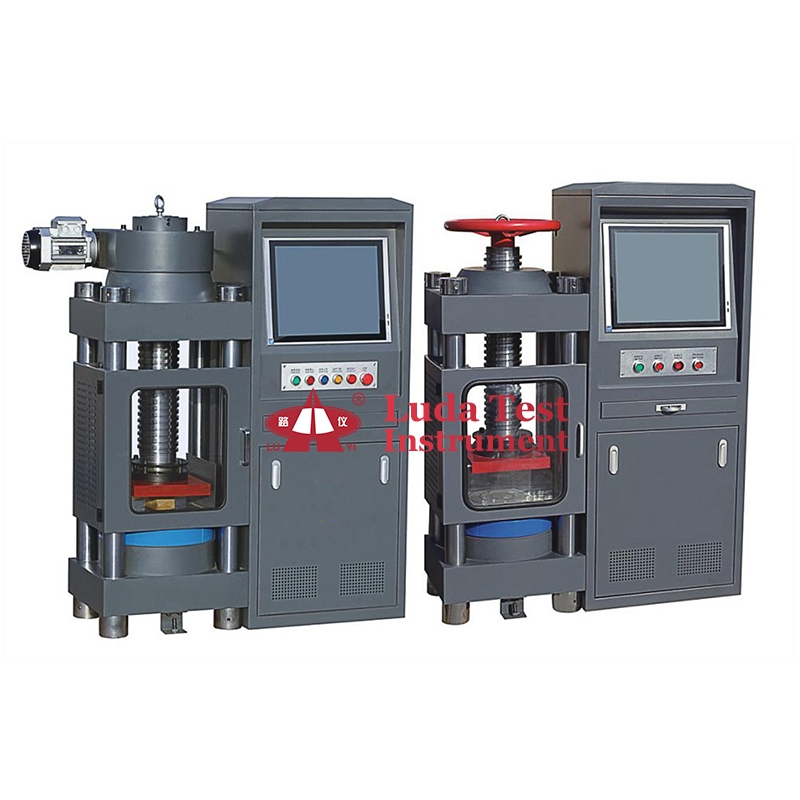

YAW-2000H micro electromechanical hydraulic servo pressure testing machine

scope of application:It is mainly used for the compressive strength test of building materials such as brick, cement mor...

微信扫码咨询

立即咨询 +86 538-8931996 返回

产品详情

scope of application:

It is mainly used for the compressive strength test of building materials such as brick, cement mortar and concrete, but also can be used for the mechanical properties test of other materials.

It adopts microcontroller control, hydraulic loading, manual/automatic adjustment of space and digital display. The product meets the requirements of GB/T50081 "Standard for Mechanical Properties Test of Ordinary Concrete".

technical parameter:

1、Test force: 2000kN;

2、Measurement range: 4% ~ 100%F · S (no step in the full range);

3、Relative error of test force indication: ±1%;

4、Maximum spacing of compressed surface (mm): 330;

5、Distance between two columns (mm): 360; ；

6、Upper pressure plate size (mm): Φ300;

7、Lower plate size (mm): Φ300; ；

8、Piston stroke (mm): 80;

9、The external size of the host (mm): 900 x 600 x 1300.
