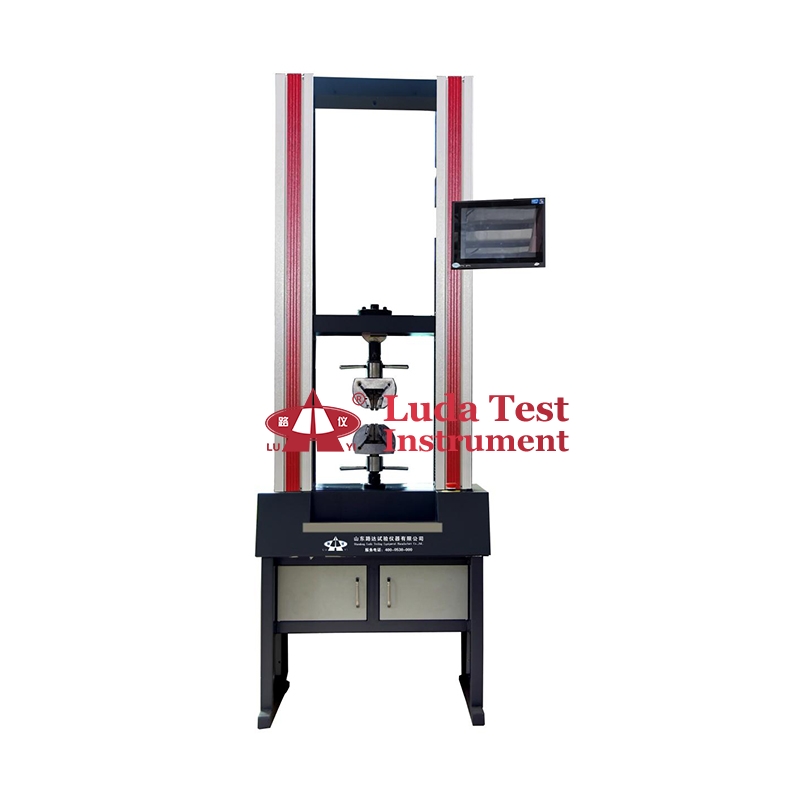

WDW series microcomputer controlled electronic universal testing machine

scope of application:It is used for tensile, compression, bending, creep, relaxation, low cycle fatigue and other tests ...

微信扫码咨询

立即咨询 +86 538-8931996 返回

产品详情

scope of application:

It is used for tensile, compression, bending, creep, relaxation, low cycle fatigue and other tests of metals, non-metals and composite materials. If equipped with corresponding fixtures and devices, it can also complete a variety of mechanical properties tests such as shear, stripping, tearing and other requirements of materials and components, as well as tests under different environmental requirements such as high temperature and low temperature.

The product complies with the following standards: GB/T 16491 'Electronic Universal Testing Machine', GB/T 232 'Bending Test Method for Metal Materials', GB/T 228 'Room Temperature Tensile Test Method for Metal Materials', GB/T 7314 'Room Temperature Compressive Test Method for Metal Materials', B/T14452 'Bending Mechanical Properties Test Method for Metal Materials', and G B/T8653 'Test Method for Young's Modulus, Shear Modulus, Torsional Modulus, and Poisson's Ratio of Metal Materials'.

Performance features:

Imported large torque AC servo motor and drive system, fast response speed, increased load/speed performance.

The scalable multi-channel collector facilitates the multi-channel input of LVDT, small load sensor, strain gauge and other equipment.

The portal frame structure and large stiffness moving beam design are adopted to ensure smooth operation under high speed and heavy load.

Arbitrary workspace selection: the double space structure pull up and down (or down and up) test does not require changing the fixture.

The toothed synchronous belt speed reduction system is equipped with precision ball screw pair for smooth transmission without gap, high efficiency and low noise.

The stretching fixture adopts the international advanced design structure, high coaxiality, reliable clamping, easy to disassemble after the sample is broken

The resolution of the large-bandwidth DSP (digital processor) measurement and control system is up to 1/600,000, and the accuracy remains unchanged within the range of measurement. It can realize closed-loop control of test force, deformation and displacement, and can set the test process arbitrarily.

High stability and high precision strain force sensor is adopted to ensure that the system error does not exceed ±0.5%.

technical parameter:

specifications and models	WDW-10	WDW-30	WDW-100
Maximum test force:	10kN	30kN	100kN
Host structure:	Equal weight dual space model	Equal weight dual space model	Equal weight dual space model
Test machine level:	Level 0.5	Level 0.5	Level 0.5
Test force measurement range:	0.2%〜100%F•S	0.4%〜100%F•S	0.4%〜100%F•S
Relative error of test force indication:	±0.5%	±0.5%	±0.5%
Test force resolution:	1/500,000 m (full range without grade)	1/500,000 m (full range without grade)	1/500,000 m (full range without grade)
Deformation measurement range:	0.2%〜100%F•S	1%〜100%F•S	1%〜100%F•S
Relative error of deformation indication:	±0.5%	±0.5%	±0.5%
Resolution resolution:	1/500,000 m (full range without grade)	1/500,000 m (full range without grade)	1/500,000 m (full range without grade)
Displacement resolution:	0.032µm	0.025µm	0.015µm
Beam speed adjustment range:	0.05—500mm/min	0.05—500mm/min	0.05—300mm/min
Effective stretch space:	1000mm	1000mm	1200mm
Effective test width:	500mm	400mm	550mm
Test force rate control range:	0.005%〜10%F•S/S	0.005%〜10%F•S/S	0.005%〜10%F•S/S
Relative error of test force rate control:	Control rate <0.05%F•S/S: ±1% Control rate is greater than or equal to 0.05%F•S/S when ±0.5%	Control rate <0.05%F•S/S: ±1% Control rate is greater than or equal to 0.05%F•S/S when ±0.5%	Control rate <0.05%F•S/S: ±1% Control rate is greater than or equal to 0.05%F•S/S when ±0.5%
The range of variable rate control should be:	0.005%〜10%F•S/S	0.005%〜10%F•S/S	0.005%〜10%F•S/S
Relative error of variable rate control:	Control rate <0.05%F•S/S when ±1% Control rate is greater than or equal to 0.05%F•S/S when ±0.5%	Control rate <0.05%F•S/S: ±1% Control rate is greater than or equal to 0.05%F•S/S when ±0.5%	Control rate <0.05%F•S/S: ±1% Control rate is greater than or equal to 0.05%F•S/S when ±0.5%
Displacement rate control range:	0.05〜500mm/min	0.05〜500mm/min	0.05〜500mm/min
Relative error of displacement rate control:	±0.5%	±0.5%	±0.5%
Force, deformation and displacement are kept within the control range:	0.3%〜100%F•S	0.3%〜100%F•S	0.3%〜100%F•S,
Force, deformation and displacement holding control relative error:	When the set value is less than 10%F•S: ±1%, When the set value is greater than or equal to 10%F•S: ±0.5%	When the set value is less than 10%F • S: ±1%, When the set value is greater than or equal to 10%F•S: ±0.5%	When the set value is less than 10%F•S: ±1%, When the set value is greater than or equal to 10%F•S: ±0.5%
The size of the host is about:	9005001500	970mm×530mm×1881mm	1100mm×630mm×2340mm
source:	AC220V±10% 50Hz	AC220V±10% 50Hz	AC380V±10% 50Hz
Machine weight:	300	500kg	800kg
