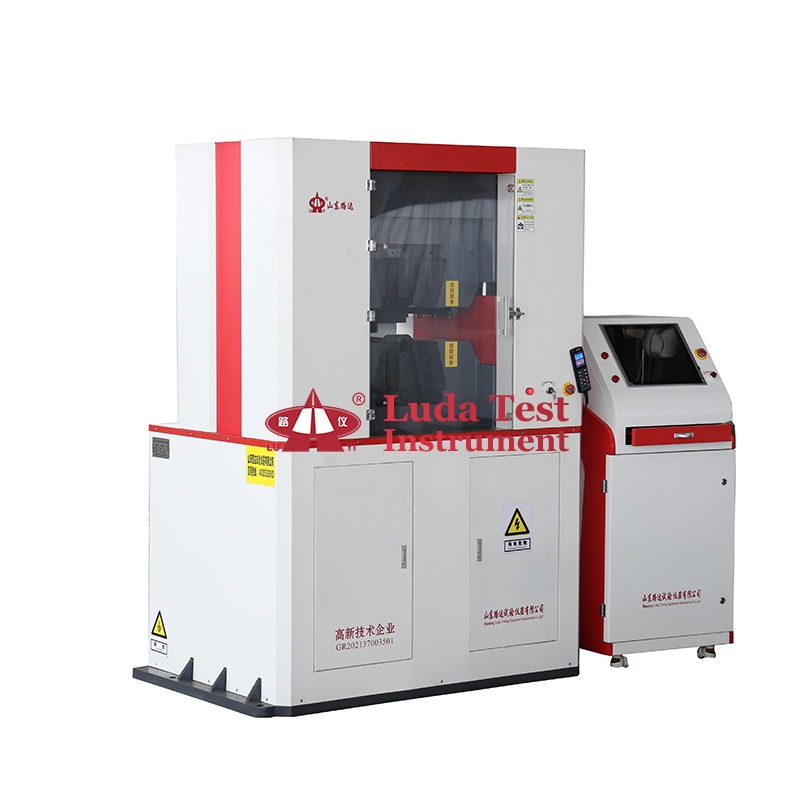

WAW2000E Microcomputer controlled electro-hydraulic servo universal testing machine

Product IntroductionThe WAW-2000E microcomputer-controlled electro-hydraulic servo universal testing machine features an...

微信扫码咨询

微信扫码咨询
立即咨询 +86 538-8931996 返回

产品详情

Product Introduction

The WAW-2000E microcomputer-controlled electro-hydraulic servo universal testing machine features an integrated design with a built-in servo silent oil source, offering a compact structure and hydraulic clamping that can perform tensile and compressive tests in the same space. The machine is equipped with a precision, bidirectional, large-stroke dual-cylinder lower placement main unit, ideal for metal and non-metal tensile, compression, bending, and shear tests. With the appropriate accessories, it can also be used for pipe flattening, flaring, bending, and edge rolling tests.

Suitable for use in fields such as metallurgy, construction, light industry, aviation, aerospace, materials, colleges and universities, and research institutions. The test operations and data processing comply with GB/T 3159-2008 'Hydraulic Universal Testing Machine', GB/T 7314-2017 'Room Temperature Compression Test Method for Metal Materials', GB/T 228.1-2021 'Tensile Test Method for Metal Materials-Part 1: Room Temperature Test Method', GB/T 232-2024 'Bending Test Method for Metal Materials', and GB/T 2611-2022 'General Technical Requirements for Testing Machines'. It also meets the requirements of other standards, including GB/T 246-2017 'Flattening Test Method for Metal Pipes', GB/T 242-2007 'Expansion Test Method for Metal Pipes', and GB/T 245-2016 'Rolling Test Method for Metal Pipes'.

Functional features

1. High stiffness main engine produced by advanced technology, reasonable structure, reliable and durable;

2. The test space is stable, reliable and durable by using the stroke of the hydraulic cylinder;

3. The base of the testing machine adopts built-in automatic lifting omnidirectional wheels, which saves time and effort in the process of installation, debugging and handling.

4. The overall height of the double cylinder design is reduced to 2.1 meters, which is convenient for transportation, installation and experimental operation;

5the clamp plate and the clamp seat are provided with a liner plate, which effectively protects the clamp seat from wear and damage;

6. The double hydraulic cylinders are placed at the bottom, and the test position is low, so it is convenient to replace auxiliary equipment and load and unload samples;

7. The servo cylinder adopts precision imported sealing parts and unique hydrostatic support oil film frictionless guidance technology;

8. Integrated design of electrical appliances, practical and beautiful. The servo oil source is equipped with imported internal meshing high pressure gear pump and servo valve, with high control accuracy;

9. Unique clamping oil circuit design to ensure the sample is firmly clamped and will not fall off when pulled;

10. Full digital closed-loop control system, fast response speed, high reliability, strong anti-interference ability;

11. The software can realize the full closed-loop high precision control of test force, displacement, deformation and test process. The control mode can be combined and switched smoothly at will, which can fully meet various test requirements;

12. The control system has a network interface, which can facilitate the network operation of the laboratory and the network transmission of test results;

Technical parameters

Main technical parameters

WAW-2000E

Maximum test force (kN)

2000

Force measurement range

5-2000

Test force accuracy

Level 0.5

Relative error of force measurement

≤±0.5%

Accuracy of constant rate displacement control

0.5-50%F.S/min

Speed accuracy

Better than ±0.5%

piston stroke (mm)

1000

Stretching space (mm)

1000

compression space (mm)

1000

Adjust the test space mechanism

Hydraulic

Column spacing (mm)

1000

Safety protection device

Software protection and mechanical limit protection

overload protection

2%~5%

control method

Stress, strain and displacement closed-loop control

Control of system configuration

special software

Maximum clamping width of test sample (mm)

80

Flat sample clamping thickness (mm)

0-60

Cylindrical sample clamping diameter (mm)

20-70

Upper and lower pressure plate size (mm)

φ200

source

380V 50Hz

Host external dimensions (approx.)

1500*1000*2100

Machine weight (kg)

8500
