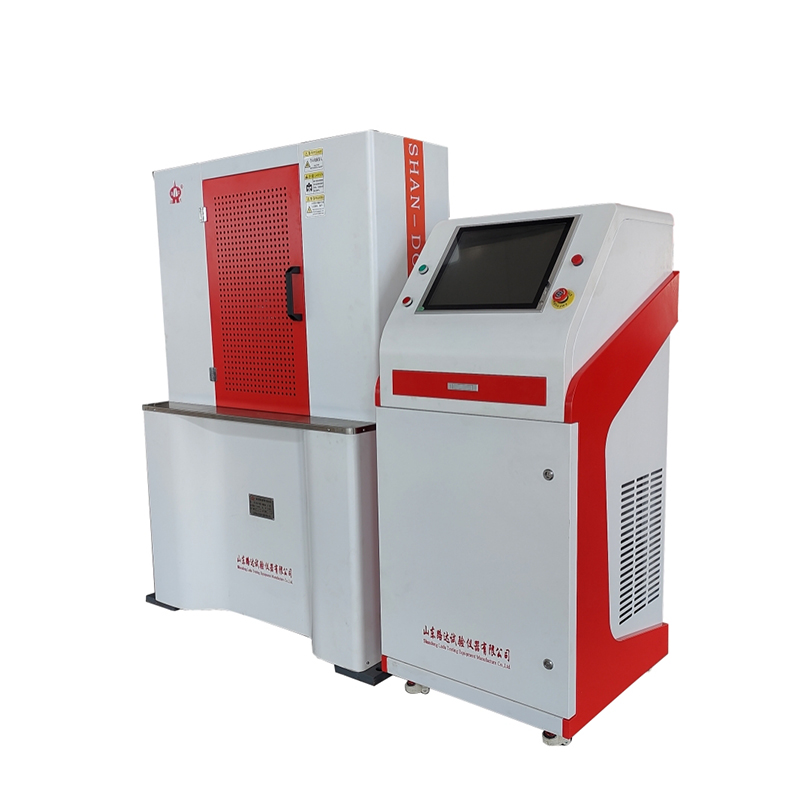

WAW-600E/1000E microcomputer controlled electro-hydraulic servo universal testing machine

Product IntroductionThe WAW-600E/1000E microcomputer-controlled electro-hydraulic servo universal testing machine featur...

微信扫码咨询

微信扫码咨询
立即咨询 +86 538-8931996 返回

产品详情

Product Introduction

The WAW-600E/1000E microcomputer-controlled electro-hydraulic servo universal testing machine features an integrated design with a built-in servo silent oil source. It is compact and features hydraulic clamping, with tension and compression in the same space. The machine is equipped with a precision dual-cylinder lower placement main unit for large stroke, which is ideal for tensile, compressive, bending, and shear tests on metals and non-metals. With the appropriate accessories, it can also be used for flattening, expanding, bending, and rolling edge tests on pipes.

Suitable for use in the fields of metallurgy, construction, light industry, aviation, aerospace, materials, colleges and universities, and research institutions. The test operations and data processing comply with GB/T 3159-2008 'Hydraulic Universal Testing Machine', GB/T 7314-2017 'Room Temperature Compression Test Method for Metal Materials', GB/T 228.1-2021 'Tensile Test Method for Metal Materials-Part 1: Room Temperature Test Method', GB/T 232-2024 'Bending Test Method for Metal Materials', and GB/T 2611-2022 'General Technical Requirements for Testing Machines'. It also meets the requirements of other standards such as GB/T 246-2017 'Flattening Test Method for Metal Pipes', GB/T 242-2007 'Expansion Test Method for Metal Pipes', and GB/T 245-2016 'Rolling Test Method for Metal Pipes'.

Functional features

1. High stiffness main engine produced by advanced technology, reasonable structure, reliable and durable;

2. The test space is stable, reliable and durable by using the stroke of the hydraulic cylinder;

3. The base of the testing machine adopts built-in automatic lifting omnidirectional wheels, which saves time and effort in the process of installation, debugging and handling of the testing machine.

4the overall height of double cylinder design is reduced to 1.7 meters, convenient for transportation, installation and experimental operation;

5the clamp plate and the clamp seat are provided with a liner plate, which effectively protects the clamp seat from wear and damage;

6. The double hydraulic cylinders are placed at the bottom, and the test position is low, so it is convenient to replace auxiliary equipment and load and unload samples;

7. The servo cylinder adopts precision imported sealing parts and unique hydrostatic support oil film frictionless guidance technology;

8. Integrated design of electrical appliances, practical and beautiful. The servo oil source is equipped with imported internal meshing high pressure gear pump and servo valve for high control accuracy;

9. Unique clamping oil circuit design to ensure the sample is firmly clamped and will not fall off when pulled;

10. Full digital closed-loop control system, fast response speed, high reliability, strong anti-interference ability;

11. The software can realize the full closed-loop high precision control of test force, displacement, deformation and test process, and the control mode can be combined arbitrarily and switched smoothly to fully meet various test requirements;

12. The control system has a network interface, which can facilitate the network operation of the laboratory and the network transmission of test results;

Technical parameters


Main technical parameters

WAW-600E

WAW-1000E

Maximum test force (kN)

600

1000

Force measurement range (kN)

3-600

5~1000

Test force accuracy

Level 0.5

Level 0.5

Relative error of force measurement

≤±0.5%

≤±0.5%

Accuracy of constant rate displacement control

0.5-50%F.S/min

0.5-50%F.S/min

Speed accuracy

Better than ±0.5%

Better than ±0.5%

piston stroke (mm)

500

500

Stretching space (mm)

700

750

compression space (mm)

600

600

Adjust the test space mechanism

Hydraulic

Hydraulic

Column spacing (mm)

750

750

Safety protection device

Software protection and mechanical limit protection

Software protection and mechanical limit protection

overload protection

2%~5%

2%~5%

control method

Stress, strain and displacement closed-loop control

Stress, strain and displacement closed-loop control

Control of system configuration

special software

special software

Maximum clamping width of test sample (mm)

70

70

Flat sample clamping thickness (mm)

2-30

0~40

Cylindrical sample clamping diameter (mm)

6-13/13-26/26-40

3-13/13-26、26-40

Upper and lower pressure plate size (mm)

φ160

Φ180

source

220V 50Hz Single item

220V 50Hz Single item

Host external dimensions (approx.)

1100*800*1700

1100*800*1700

Machine weight (kg)

2500

2700
