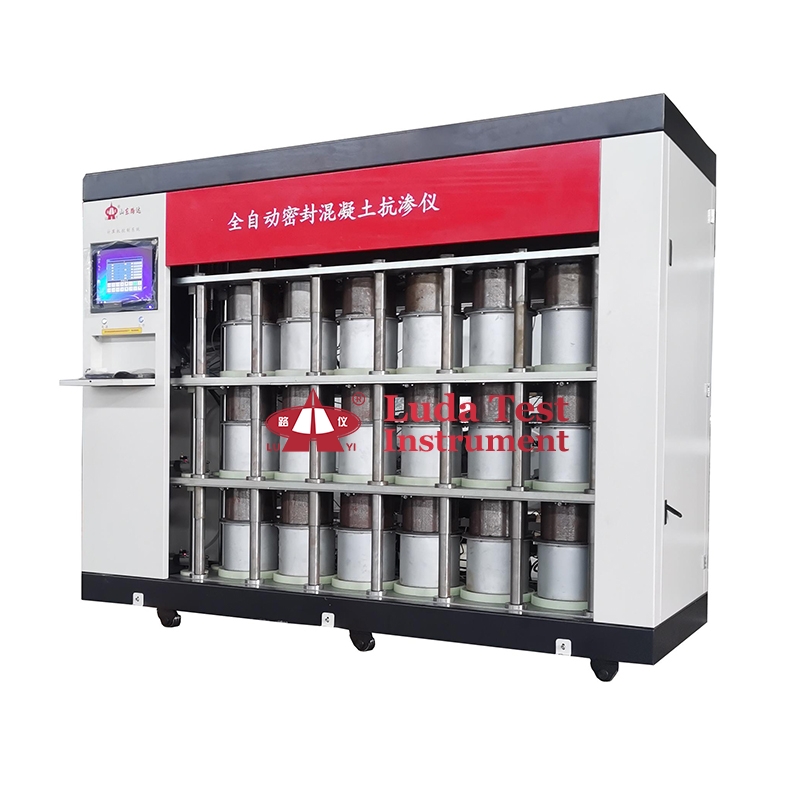

operate mode

1. The whole process is fully controlled by computer, one-button operation, no manual covering and sealing materials, automatic test (automatic sealing, automatic pressure, automatic constant pressure, automatic demolding), video monitoring and automatic leakage judgment, recording the time and pressure of leakage; each sample is independently controlled;

2, two test modes can be selected (step by step pressure method and permeation height method);

3, enhance the automatic sealing of air pressure without any sealing material;

Test pressure pressurization method

Adding pressure from the bottom up;

Test specimen barrel material

High strength plate die casting molding;

Test modulus

1. Each group can install 6 specimens (independent measurement and control, independent judgment);

2, can control 10 sets of 60 specimens;

Test piece sealing material

Enhanced nylon, natural rubber, special wear resistance, high pressure materials;

Applicable specimen size

φ175*φ185*150mm;

Relative error of test machine reading

≤0.005MPa;

Test pressure resolution accuracy

0.001MPa;

The test pressure value is maintained at the error value

1. Step-by-step pressure method: ±0.005MPa;

2. Permeation height method: ±0.005MPa;

Maximum pressure of the testing machine

1.2MPa;

Test piece sealing method

Enhance the gas sealing, all specimens can be sealed at the same time, the total sealing time is less than or equal to 5min;

Maximum sealing pressure of the specimen

2.0MPa;

Seal pressure resolution

0.001MPa;

Touch display

LCD computer touch screen, used for test operation and status display;

Test data query

It can automatically form test reports and export original records (data storage time capacity is more than 5 years), and can also upload the data to the user's designated testing platform system. The report template can be customized according to customer requirements;

Up and down driving mode

Servo motor drive;

Total power of the equipment

Instantaneous 3200W (including air pump); normal operation of the equipment is less than 500W;

Power supply installation conditions

The municipal power is 220V 50HZ, ±10%;

Self-designed structure

1. Airbag manufacturing method of fully automatic mold demolding anti-permeation test instrument;

2. The anti-permeation test instrument has a separate airbag fastening sealing structure for the specimen;

3. Each layer of independent pump control pressure, test piece independent measurement and control judgment;

Operating system maintenance

Free maintenance and update the latest version of software;

Equipment noise

The noise of the equipment shall not exceed 70 db during operation; (except when the air pressure is released at the end of the test)

The equipment vibrates

The equipment adopts servo drive lifting, no vibration, no impact on the surrounding environment and other equipment;
